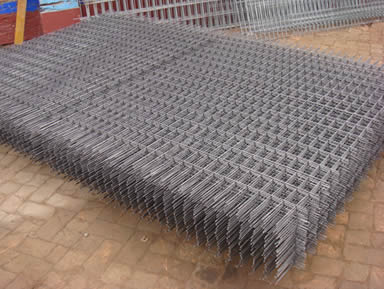

Welded Wire Mesh Panel

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.

Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.

Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.

Products Information

Material Low carbon steel wire, galvanized wire, stainless steel wire, aluminum-magnesium alloy wire
Process Welded after galvanized and galvanized after welding
Mesh 75mm x 150mm
Size 1800mm x 3000mm(or more)
PVCCoating Thickness 0.5mm ~ 1.0mm
Packing Bare or pallet

Common Specification

Wire Diameter Mesh Width
inch mm
2.0mm ~ 3.2mm 1" 25.40 0.914m ~ 1.83m
2.0mm ~ 4.5mm 2" 50.80 0.914m ~ 2.75m
2.0mm ~ 6.0mm 3" 70.20 0.914m ~ 2.75m
2.0mm ~ 6.0mm 4" 101.6 0.914m ~ 2.75m
2.0mm ~ 6.0mm 5" 127.0 0.914m ~ 2.75m
2.0mm ~ 6.0mm 6" 152.4 0.914m ~ 2.75m
2.0mm ~ 6.0mm 7" 177.8 0.914m ~ 2.75m
2.0mm ~ 6.0mm 8" 203.2 0.914m ~ 2.75m

If you need to consult the price, please contact the business department by e-mail:
Yaqi will service for you !
E-mail: sales@yaqiwiremesh.com

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
